Draglines
2020 · 3 models
P&H (Pacemaker & Hoist)
P&H (Pacemaker & Hoist)Brand
2020Period
Historical modelStatus
P&H (Pacemaker & Hoist)
Models and Historical Names in This Series
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Historical names / renamings | Period | Components |
|---|---|---|---|
| P&H 9010C | 9010C | 2020 | 12 |
| P&H 9020C | 9020C | 2020 | 12 |
| P&H 9020XPC | 9020XPC | 2020 | 12 |
P&H (Pacemaker & Hoist)
Numbered Components

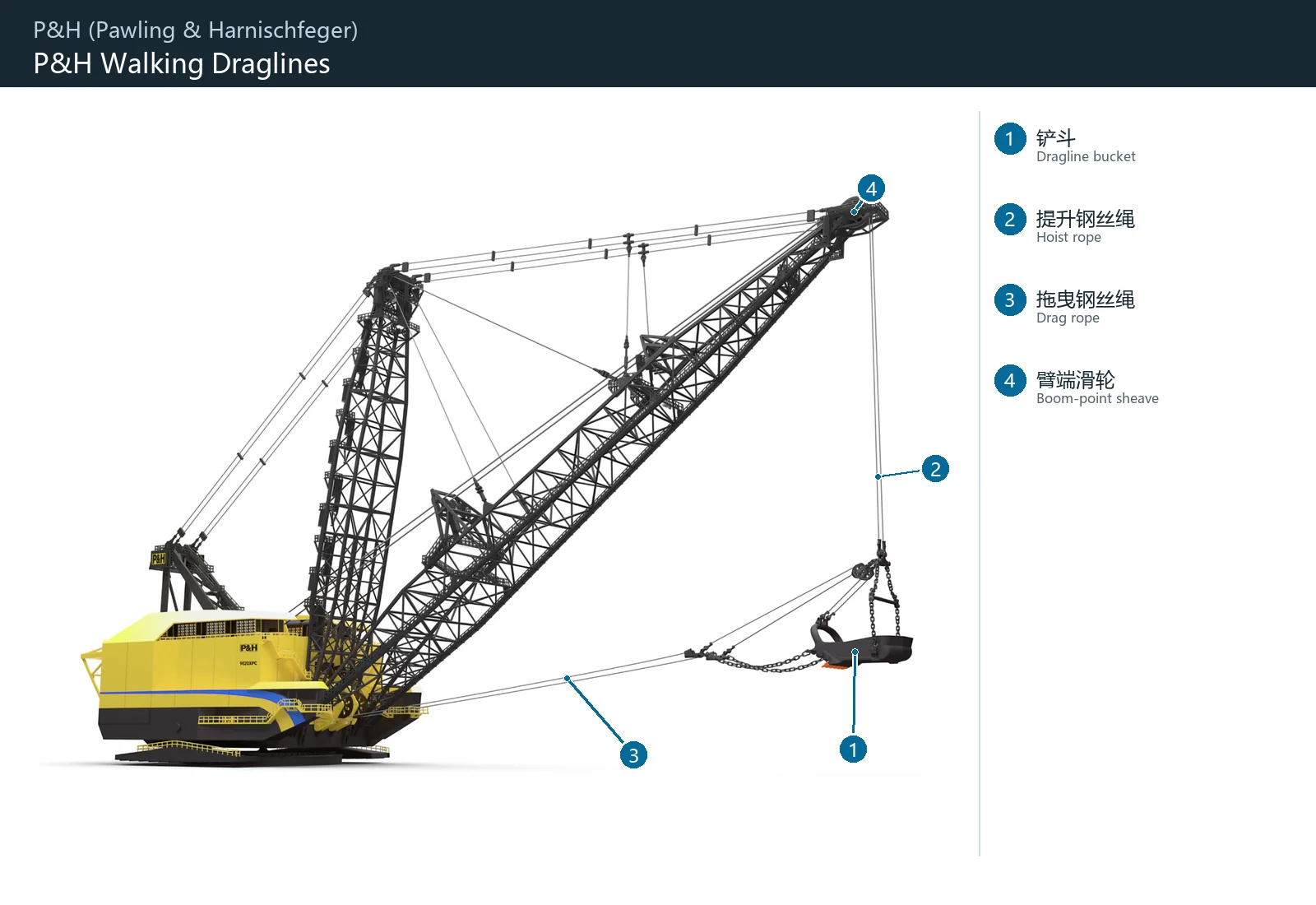

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Dragline bucket | Bucket suspended ahead of the boom | 9020XPC |
| 2 | Hoist rope | Hoist rope descending from the boom point | 9020XPC |
| 3 | Drag rope | Drag rope from machinery front to bucket | 9020XPC |
| 4 | Boom-point sheave | Rope sheave at the boom tip | 9020XPC |
Other Components · 8 items
| Component |
|---|
| Winch drum |
| Swing ring gear |
| Support roller |
| Walking shoe |
| Hoist motor |
| Drag motor |
| Swing motor |
| Walking motor |
P&H (Pacemaker & Hoist)
Components by Model
Models with the same components are grouped together; select a group to open its component table.
P&H 9010C, P&H 9020C, P&H 9020XPC12 items
Models: P&H 9010C, P&H 9020C, P&H 9020XPC
| No. | Component |
|---|---|
| 1 | Bucket |
| 2 | Model-specific component |
| 3 | Model-specific component |
| 4 | Model-specific component |
| Winding drum | |
| Rotary Ring gear | |
| Model-specific component | |
| Model-specific component | |
| Hoist Electric motor | |
| Model-specific component | |
| Rotary Electric motor | |
| Walking Electric motor |
