6 models
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Components |
|---|---|
| БЦК-8 / 4,5х2,25 | 5 |
| БЦК-8 / 5х1,7 | 5 |
| БЦК-8 / 5х2 | 5 |
| БЦК-8 / 5х2,5 | 5 |
| БЦК-8 / 5х2,7 | 5 |
| БЦК-9 / 5х2,5 | 5 |

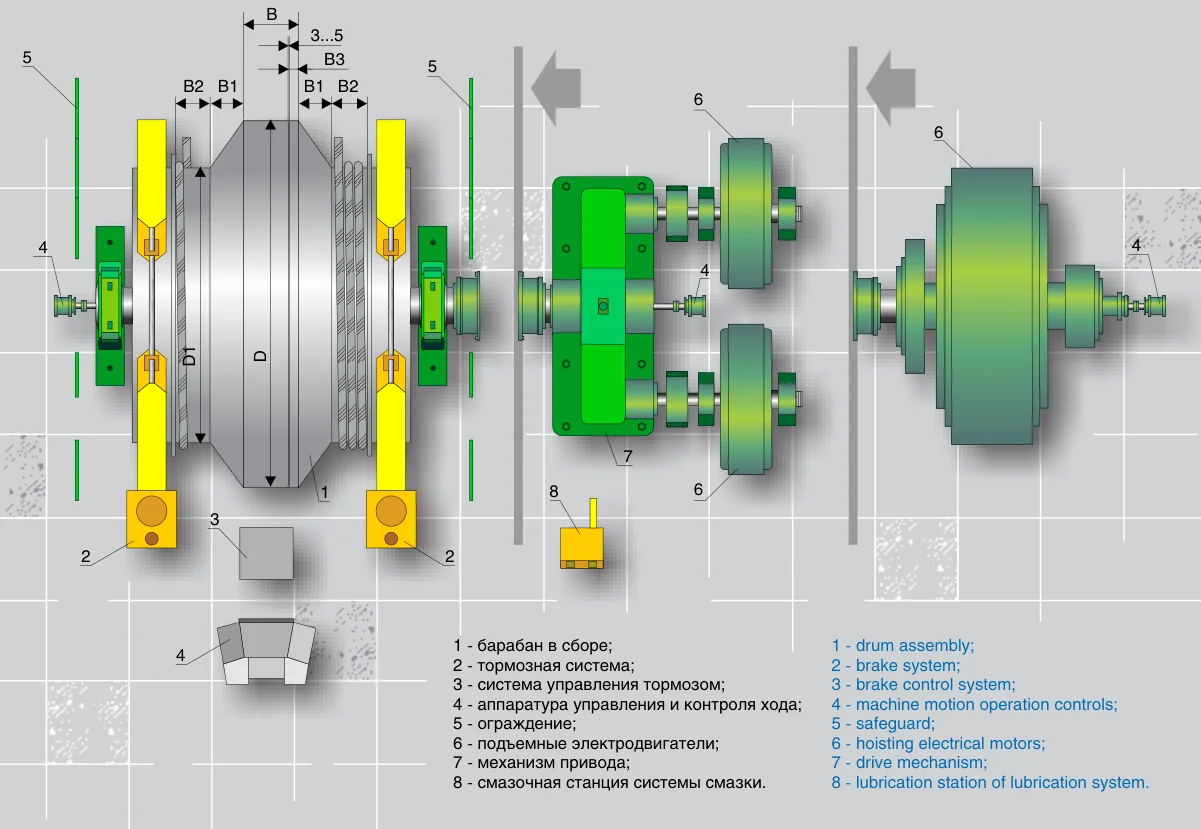

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Drum assembly | Left rope-winding section | БЦК-8/4,5х2,25;БЦК-8/5х1,7;БЦК-8/5х2;БЦК-8/5х2,5;БЦК-8/5х2,7;БЦК-9/5х2,5 |
| 2 | Brake system | Brake assemblies on both sides of the drum | БЦК-8/4,5х2,25;БЦК-8/5х1,7;БЦК-8/5х2;БЦК-8/5х2,5;БЦК-8/5х2,7;БЦК-9/5х2,5 |
| 3 | Brake control system | Control cabinet in front of the drum | БЦК-8/4,5х2,25;БЦК-8/5х1,7;БЦК-8/5х2;БЦК-8/5х2,5;БЦК-8/5х2,7;БЦК-9/5х2,5 |
| 4 | Machine motion controls | Shaft-end monitoring and operator console | БЦК-8/4,5х2,25;БЦК-8/5х1,7;БЦК-8/5х2;БЦК-8/5х2,5;БЦК-8/5х2,7;БЦК-9/5х2,5 |
| 5 | Safeguards | Protective barriers beside drum and motors | БЦК-8/4,5х2,25;БЦК-8/5х1,7;БЦК-8/5х2;БЦК-8/5х2,5;БЦК-8/5х2,7;БЦК-9/5х2,5 |
| 6 | Hoisting electric motors | Electric drive at the right | БЦК-8/4,5х2,25;БЦК-8/5х1,7;БЦК-8/5х2;БЦК-8/5х2,5;БЦК-8/5х2,7;БЦК-9/5х2,5 |
| 7 | Drive mechanism | Central geared drive | БЦК-8/4,5х2,25;БЦК-8/5х1,7;БЦК-8/5х2;БЦК-8/5х2,5;БЦК-8/5х2,7;БЦК-9/5х2,5 |
| 8 | Lubrication station | Lubrication unit below the drive | БЦК-8/4,5х2,25;БЦК-8/5х1,7;БЦК-8/5х2;БЦК-8/5х2,5;БЦК-8/5х2,7;БЦК-9/5х2,5 |
Models with the same components are grouped together; select a group to open its component table.
Models: БЦК-8 / 4,5х2,25, БЦК-8 / 5х1,7, БЦК-8 / 5х2, БЦК-8 / 5х2,5, БЦК-8 / 5х2,7, БЦК-9 / 5х2,5
| No. | Component |
|---|---|
| 1 | Model-specific component |
| 2 | Brake system |
| 6 | Hoist Electric motor |
| 7 | Model-specific component |
| 8 | Model-specific component |
The БЦК-8/4,5х2,25 etc. covers 6 models: БЦК-8 / 4,5х2,25, БЦК-8 / 5х1,7, БЦК-8 / 5х2, БЦК-8 / 5х2,5, БЦК-8 / 5х2,7, БЦК-9 / 5х2,5. Former and renamed designations are listed in the models table on this page.
The БЦК-8/4,5х2,25 etc. is also documented under these designations: БЦК-8 / 4,5х2,25, БЦК-8 / 5х1,7, БЦК-8 / 5х2, БЦК-8 / 5х2,5, БЦК-8 / 5х2,7, БЦК-9 / 5х2,5.
The БЦК-8/4,5х2,25 etc. is listed under the NKMZ brand. Status: Historical model.
5 components are recorded, including: Brake system, Hoist Electric motor and more. The full list with locations is in the components table on this page.
