Coal washing machine · 1952 · 1 model
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Historical names / renamings | Period | Components |
|---|---|---|---|
| McNally predecessor MOGUL coal washing machine | McNally MOGUL WASHER; McNally-Pittsburg seven-cell Mogul washer; McNally Mogul Washer; McNally MOGUL | 1952 | 6 |

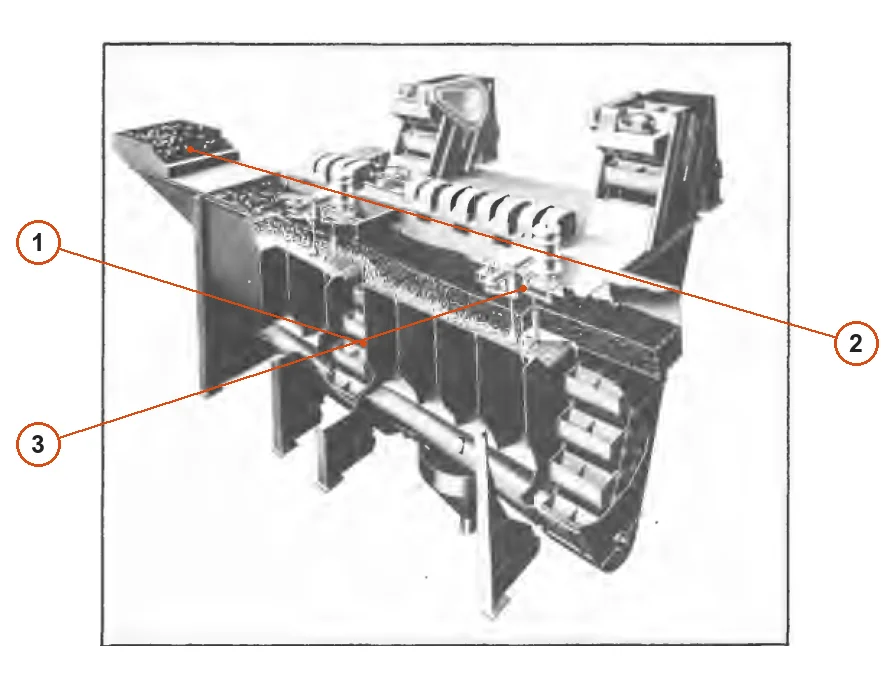

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Washing vessel | Compartmented washing vessel in the cutaway | MOGUL version in 1976 Figure7-30 |
| 2 | Feed chute | Upper left feed end | MOGUL version in 1976 Figure7-30 |
| 3 | 1976 MOGUL float-control assembly | Control rod and linkage above the separation bed | MOGUL version in 1976 Figure7-30 |
| Component |
|---|
| Seven-chamber coal washing tank segmentation |
| 1976Mogul multiple selection washing room group |
| 1976Mogul pneumatic discharge gate |
| 1976Mogul multi-finger pivot brake |
| 1976Mogul gate upper perforated plate |
Models with the same components are grouped together; select a group to open its component table.
| No. | Component | Location |
|---|---|---|
| 3 | 1976Mogul float mechanism | Control the bed depth and adjust the opening of the discharge gate |
| Seven-chamber coal washing tank segmentation | The first three chambers are mainly separated, and the remaining chambers are washed again. | |
| 1976Mogul multiple selection washing room group | Four rooms are selected in the second round, with the first two rooms divided into layers and continued with the last two rooms; the total number of rooms in the primary election is not included in this paragraph. | |
| 1976Mogul pneumatic discharge gate | evacuating gates, air operated | |
| 1976Mogul multi-finger pivot brake | The gate consists of multiple pivot fingers, the quantity is not specified | |
| 1976Mogul gate upper perforated plate | The rising pulse of the adjacent washing room passes through this board |
The Coal washer is also documented under these designations: McNally predecessor MOGUL coal washing machine, McNally MOGUL WASHER, McNally-Pittsburg seven-cell Mogul washer, McNally MOGUL.
The Coal washer is listed under the McNally Wellman brand as: Coal washing machine. Period: 1952. Status: Historical model.
6 components are recorded, including: Seven-chamber coal washing tank segmentation, 1976Mogul multiple selection washing room group, 1976Mogul float mechanism, 1976Mogul pneumatic discharge gate, 1976Mogul multi-finger pivot brake, 1976Mogul gate upper perforated plate. The full list with locations is in the components table on this page.
