What other names or designations is the Grizzly / Scalping Screens known by?
The Grizzly / Scalping Screens is also documented under these designations: Kwatani Grizzly / Scalping Screens, 2018: 4.3 m, 3 m × 9 m ROM Screen.
Grizzly / Scalping Screens
2015–2022 · 1 model
Kwatani
KwataniBrand
2015–2022Period
Historical modelStatus
Kwatani
Models and Historical Names in This Series
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Historical names / renamings | Period | Components |
|---|---|---|---|
| Kwatani Grizzly / Scalping Screens | 2018: 4.3 m; 3 m × 9 m ROM Screen | 2015–2022 | 7 |
Kwatani
Numbered Components

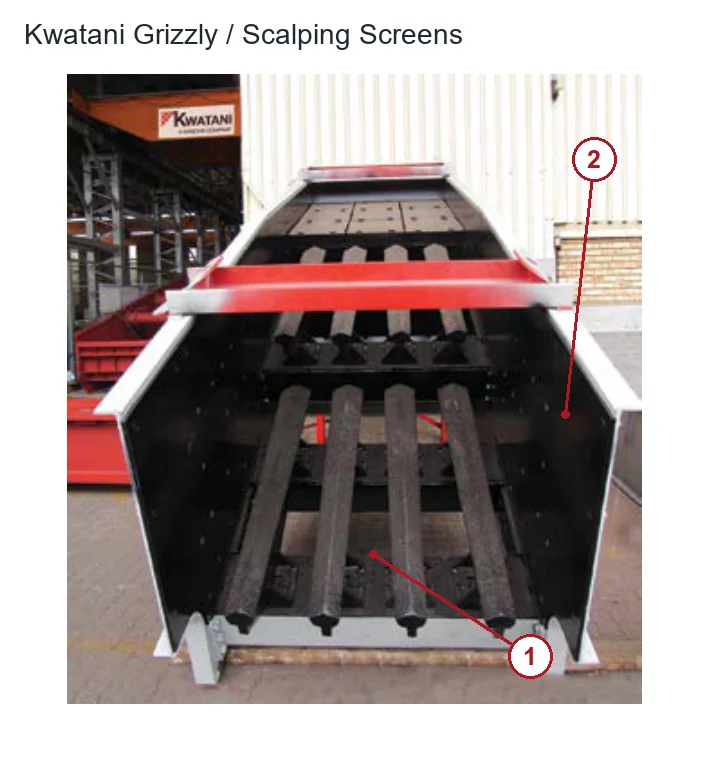

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Grizzly bar | Exposed parallel grizzly bars in lower screening section | 2023 OEM ROM grizzly-screen configuration |
| 2 | Screen box | Screen body side plates beside the grizzly bars | 2023 OEM ROM grizzly-screen configuration |
Other Components · 5 items
| Component |
|---|
| Screen panel |
| Exciter |
| Bearing |
| Coil spring |
| Isolation element |
Kwatani
Components by Model
Models with the same components are grouped together; select a group to open its component table.
Kwatani Grizzly / Scalping Screens7 items
| No. | Component | Location |
|---|---|---|
| 1 | Bar | Coarse screening working surface |
| 2 | Screen box | |
| Screen plate | ||
| Exciter | ||
| Bearing | ||
| Screw spring | ||
| Model-specific component |
Frequently asked questions
Which brand and type of equipment is the Grizzly / Scalping Screens?
The Grizzly / Scalping Screens is listed under the Kwatani brand. Period: 2015–2022 Kwatani. Status: Historical model.
Which components and wear parts are recorded for the Grizzly / Scalping Screens?
7 components are recorded, including: Screen plate, Exciter, Bearing, Bar, Screw spring, Screen box and more. The full list with locations is in the components table on this page.
How do I enquire about parts for the Grizzly / Scalping Screens?
Send us a drawing or sample and tell us the equipment model and part name.
