What other names or designations is the slurryMAX-XHP known by?
The slurryMAX-XHP is also documented under these designations: KREBS slurryMAX-XHP 16x14.
slurryMAX-XHP
2026-10-03 · 1 model
KREBS Cyclones and Slurry Pumps
KREBS Cyclones and Slurry PumpsBrand
2026-10-03Period
Historical modelStatus
KREBS Cyclones and Slurry Pumps
Models and Historical Names in This Series
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Period | Components |
|---|---|---|
| KREBS slurryMAX-XHP 16x14 | 2026-10-03 | 11 |
KREBS Cyclones and Slurry Pumps
Numbered Components

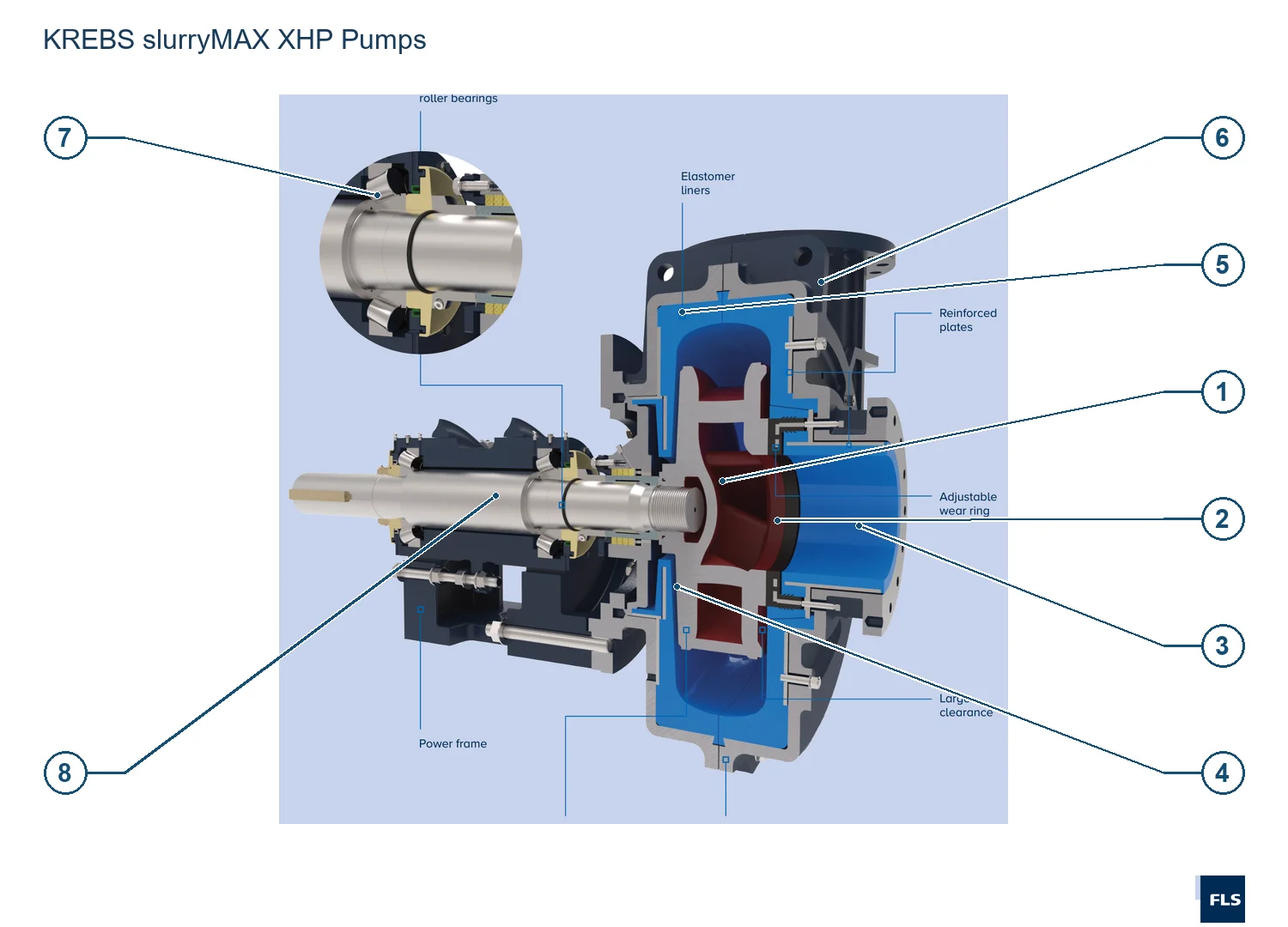

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location |
|---|---|---|
| 1 | Impeller | Red wet-end impeller |
| 2 | Wear ring | Front of the impeller eye |
| 3 | Suction liner | Blue lining around the suction inlet |
| 4 | Rear liner | Blue rear liner on the drive side |
| 5 | Volute liner | Blue liner of the volute chamber |
| 6 | Pump casing | Metal casing outside the blue liner |
| 7 | Bearing | Bearing shown in the drive-end section |
| 8 | Pump shaft | Shaft running from the bearing frame to the impeller |
Other Components · 3 items
| Component |
|---|
| Expeller |
| Mechanical seal |
| Packed gland seal |
KREBS Cyclones and Slurry Pumps
Components by Model
Models with the same components are grouped together; select a group to open its component table.
KREBS slurryMAX-XHP 16x1411 items
| No. | Component |
|---|---|
| 1 | Impeller |
| 2 | Wear ring |
| 3 | Model-specific component |
| 4 | Rear liner |
| 5 | Model-specific component |
| 6 | Pump casing |
| 7 | Bearing |
| 8 | Pump shaft |
| Auxiliary Impeller | |
| Mechanical seal | |
| Model-specific component |
Frequently asked questions
Which brand and type of equipment is the slurryMAX-XHP?
The slurryMAX-XHP is listed under the KREBS Cyclones and Slurry Pumps brand. Period: 2026-10-03. Status: Historical model.
Which components and wear parts are recorded for the slurryMAX-XHP?
11 components are recorded, including: Impeller, Wear ring, Rear liner, Pump casing, Auxiliary Impeller, Mechanical seal, Bearing, Pump shaft and more. The full list with locations is in the components table on this page.
How do I enquire about parts for the slurryMAX-XHP?
Send us a drawing or sample and tell us the equipment model and part name.
