9 models

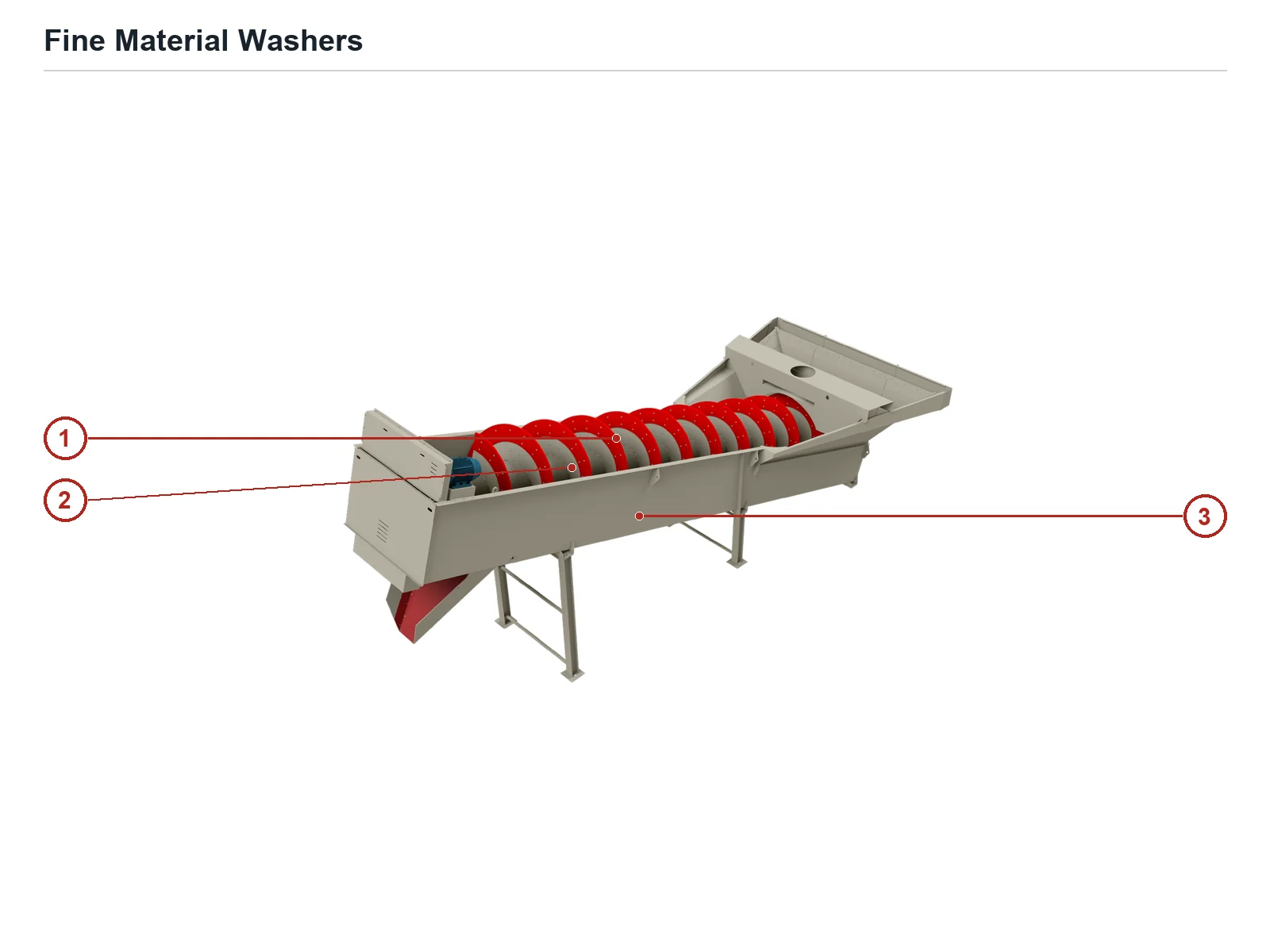

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Spiral flight | Red spiral flights around the screw shaft inside the tub | 5036-25S;5044-32S;5054-34S;5060-35S;5066-35S |
| 2 | Screw shaft | Shaft centerline through the spiral flights | 5036-25S;5044-32S;5054-34S;5060-35S;5066-35S |
| 3 | Washer tub | Tub surrounding the screw shaft | 5036-25S;5044-32S;5054-34S;5060-35S;5066-35S |
| Component |
|---|
| Outer wear shoe |
| Inner wear shoe |
| Overflow weir |
| Drive belt |
Models with the same components are grouped together; select a group to open its component table.
Models: 5036-25S, 5036-25T, 5044-32S, 5044-32T, 5054-34S, 5054-34T, 5060-35S, 5060-35T, 5066-35S
| No. | Component | Location |
|---|---|---|
| 2 | Screw shaft | Conveying shaft inside the trough |
| Spiral Wear Shoe / Tip | Outer edge of the screw flight | |
| Spiral Wear Shoe / Tip | ||
| Overflow Weir Plate | ||
| Drive belt |
The Fine Material Washer covers 9 models: 5036-25S, 5036-25T, 5044-32S, 5044-32T, 5054-34S, 5054-34T, 5060-35S, 5060-35T, 5066-35S. Former and renamed designations are listed in the models table on this page.
The Fine Material Washer is also documented under these designations: 5036-25S, 5036-25T, 5044-32S, 5044-32T, 5054-34S, 5054-34T, 5060-35S, 5060-35T, 5066-35S.
The Fine Material Washer is listed under the Kolberg-Pioneer brand. Status: Historical model.
5 components are recorded, including: Spiral Wear Shoe / Tip, Spiral Wear Shoe / Tip, Overflow Weir Plate, Drive belt, Screw shaft. The full list with locations is in the components table on this page.
Model-specific components with their own page: Screw shaft (1 in total).
Send us a drawing or sample and tell us the equipment model and part name.
Provide the equipment model, drawing for engineering review and quotation. If service life or wear is a concern, describe the operating conditions as well.
