Which models does the Cage-Paktor 1C3R cover?
The Cage-Paktor 1C3R covers 4 models: Cage-Paktor 301C3R, Cage-Paktor 401C3R, Cage-Paktor 501C3R, Cage-Paktor 751C3R. Former and renamed designations are listed in the models table on this page.
Cage-Paktor 1C3R
2024 · 4 models
Gundlach Crushers
Gundlach CrushersBrand
2024Period
Historical modelStatus
Gundlach Crushers
Models and Historical Names in This Series
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Historical names / renamings | Period | Components |
|---|---|---|---|
| Cage-Paktor 301C3R | 301C3R; 1C3R | 2024 | 6 |
| Cage-Paktor 401C3R | 401C3R; 1C3R | 2026 | 6 |
| Cage-Paktor 501C3R | 501C3R; 1C3R | 2026 | 6 |
| Cage-Paktor 751C3R | 751C3R; 1C3R | 2026 | 6 |
Gundlach Crushers
Numbered Components

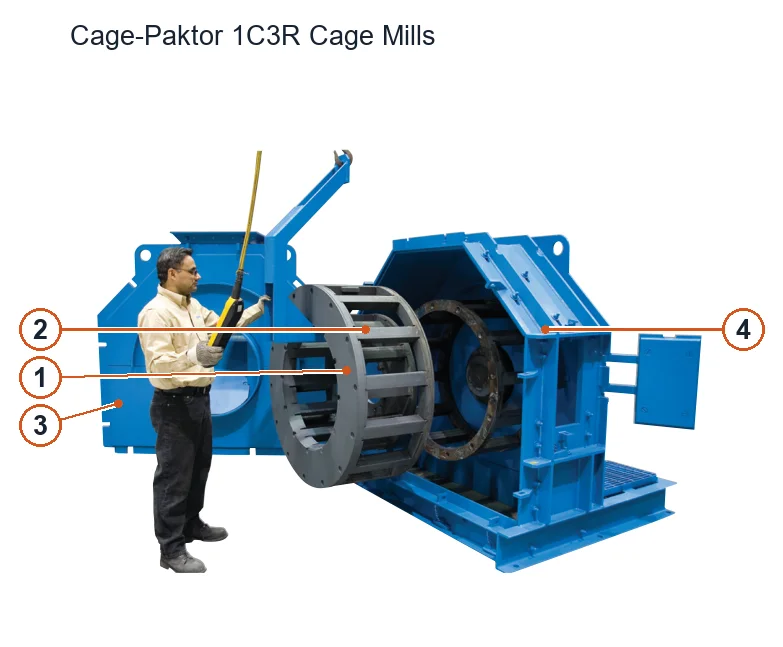

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Cage assembly | Cylindrical cage exposed by the open access door | 501C3R |
| 2 | Striking bar / plate | Axial striking elements around the cage | 501C3R |
| 3 | Swing-away access door | Swing-away access door on the housing side | 501C3R |
| 4 | Main case | External case surrounding the cage | 501C3R |
Gundlach Crushers
Components by Model
Models with the same components are grouped together; select a group to open its component table.
Cage-Paktor 301C3R, Cage-Paktor 401C3R, Cage-Paktor 501C3R, Cage-Paktor 751C3R6 items
Models: Cage-Paktor 301C3R, Cage-Paktor 401C3R, Cage-Paktor 501C3R, Cage-Paktor 751C3R
| No. | Component | Location |
|---|---|---|
| 1 | Cage assembly | Rotating impact cage inside the crushing chamber |
| 2 | Striking plate | Impact working faces of each ring of the cage |
| 3 | Access door | Side access entrance of the housing |
| Rotor shaft | ||
| Model-specific component | ||
| Feed chute | Central feed point of the cage crusher |
Frequently asked questions
What other names or designations is the Cage-Paktor 1C3R known by?
The Cage-Paktor 1C3R is also documented under these designations: Cage-Paktor 301C3R, 301C3R, 1C3R, Cage-Paktor 401C3R, 401C3R, Cage-Paktor 501C3R, 501C3R, Cage-Paktor 751C3R, 751C3R.
Which brand and type of equipment is the Cage-Paktor 1C3R?
The Cage-Paktor 1C3R is listed under the Gundlach Crushers brand. Period: 2024. Status: Historical model.
Which components and wear parts are recorded for the Cage-Paktor 1C3R?
6 components are recorded, including: Rotor shaft, Striking plate, Cage assembly, Feed chute, Access door and more. The full list with locations is in the components table on this page.
Which model-specific components of the Cage-Paktor 1C3R have their own page?
Model-specific components with their own page: Striking plate, Cage assembly, Feed chute, Access door (4 in total).
How do I enquire about parts for the Cage-Paktor 1C3R?
Send us a drawing or sample and tell us the equipment model and part name.
