1991 · 1 model
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Historical names / renamings | Period | Components |
|---|---|---|---|
| FCB Horomill | BHG; HRM; FCB Horomill 2200; FCB Horomill 2800; FCB Horomill 3400; FCB Horomill 3600; FCB Horomill 3800; FCB Horomill 4200; FCB Horomill 4400 | 1991 | 3 |

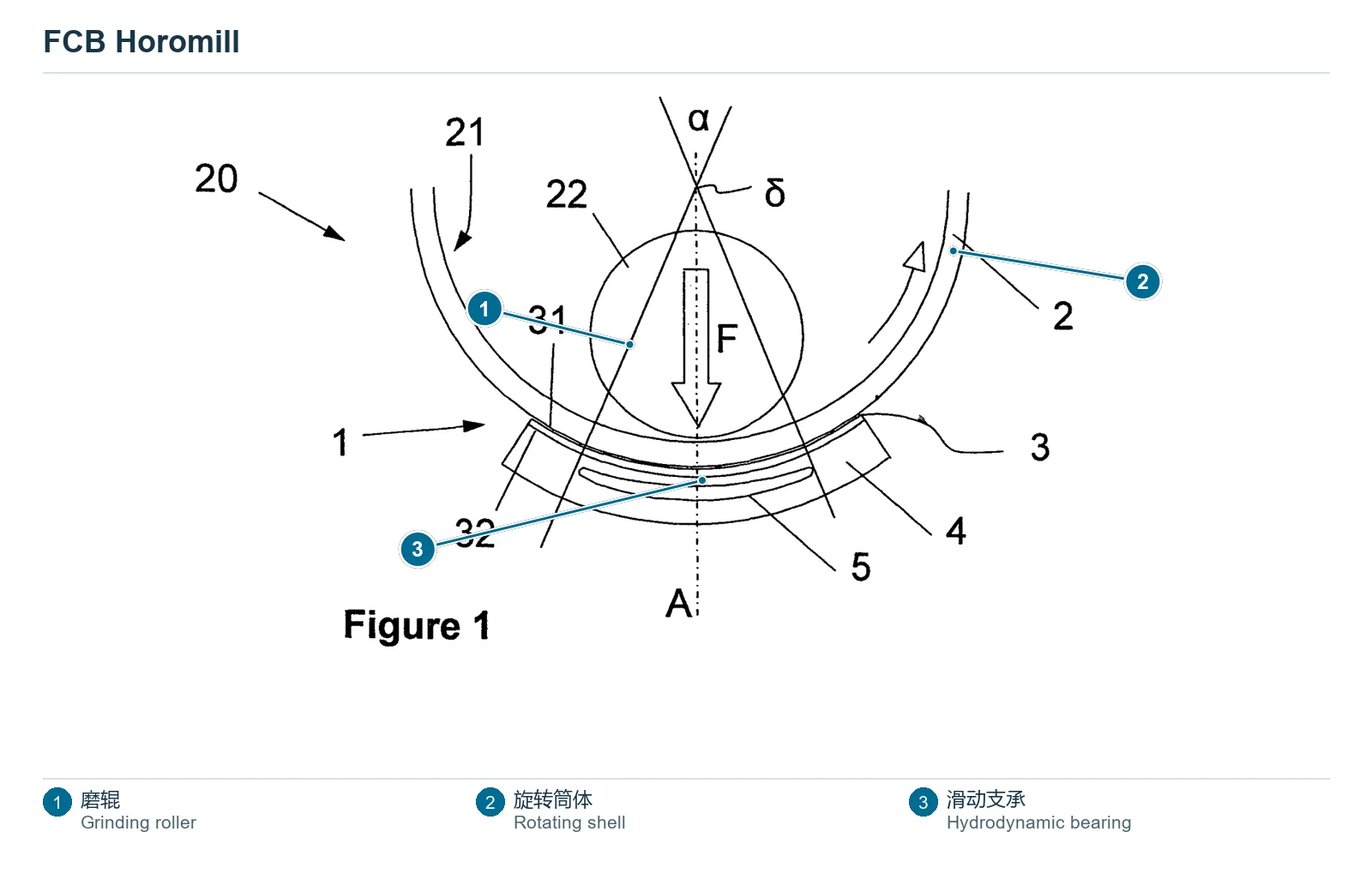

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Grinding roller | Inside the shell, running on the circular grinding track | FCB Horomill - US9140295 Fig.1 support embodiment |
| 2 | Rotating shell | Rotating cylinder outside the roller | FCB Horomill - US9140295 Fig.1 support embodiment |
| 3 | Hydrodynamic bearing | Curved support below the rotating shell | FCB Horomill - US9140295 Fig.1 support embodiment |
| Component |
|---|
| Shell liner |
| Hydraulic loading device |
Models with the same components are grouped together; select a group to open its component table.
| No. | Component | Location |
|---|---|---|
| 1 | Grinding roller | |
| Shell liner | ||
| Hydraulic loading device | Grinding roller loading mechanism |
The FCB Horomill is also documented under these designations: BHG, HRM, FCB Horomill 2200, FCB Horomill 2800, FCB Horomill 3400, FCB Horomill 3600, FCB Horomill 3800, FCB Horomill 4200, FCB Horomill 4400.
The FCB Horomill is listed under the Fives Group brand. Period: 1991. Status: Historical model.
3 components are recorded, including: Grinding roller, Shell liner, Hydraulic loading device. The full list with locations is in the components table on this page.
