What other names or designations is the CR Dragline Chain and Rigging known by?
The CR Dragline Chain and Rigging is also documented under these designations: Dragline Chain and Rigging, Dragline rigging, Surelock, C-Lock, C2.
CR Dragline Chain and Rigging
1 model
CR
CRBrand
Historical modelStatus
CR
Models and Historical Names in This Series
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Historical names / renamings | Components |
|---|---|---|
| Dragline Chain and Rigging | Dragline rigging; Surelock; C-Lock; C2 | 10 |
CR
Numbered Components

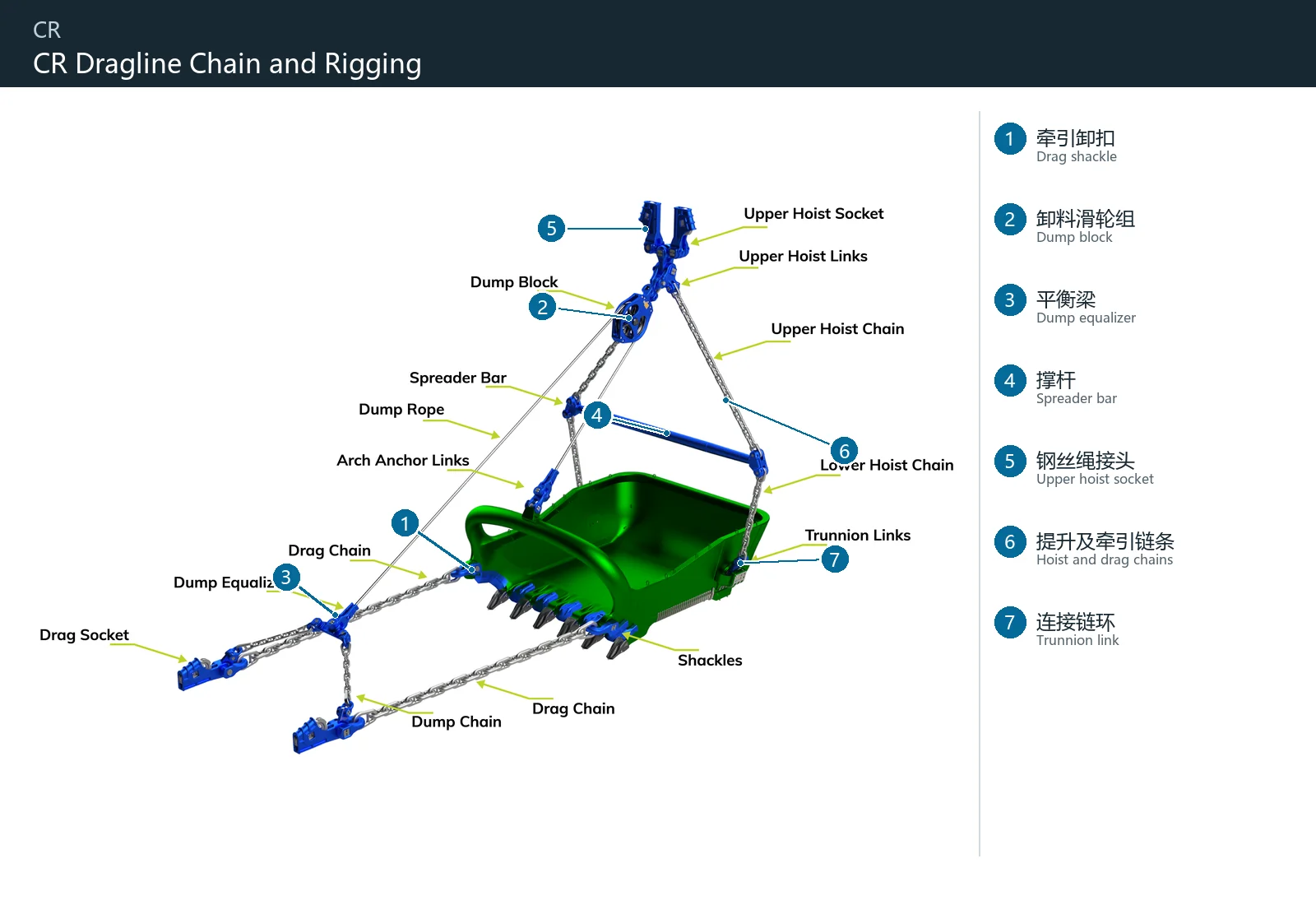

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Drag shackle | Drag-chain connection at the front of the bucket | Dragline Chain and Rigging |
| 2 | Dump block | Blue dump pulley block near the upper hoist connection | Dragline Chain and Rigging |
| 3 | Dump equalizer | Dump equalizer at the front junction of the drag chains | Dragline Chain and Rigging |
| 4 | Spreader bar | Blue crossbar between left and right hoist rigging | Dragline Chain and Rigging |
| 5 | Upper hoist socket | Upper hoist rope socket | Dragline Chain and Rigging |
| 6 | Hoist and drag chains | Hoist chains beside the bucket and drag chains ahead of it | Dragline Chain and Rigging |
| 7 | Trunnion link | Blue trunnion link at the sidewall connection | Dragline Chain and Rigging |
Other Components · 3 items
| Component |
|---|
| Dump shackle |
| Rigging pin |
| Hammerless lock |
CR
Components by Model
Models with the same components are grouped together; select a group to open its component table.
Dragline Chain and Rigging10 items
| No. | Component | Location |
|---|---|---|
| 1 | Model-specific component | |
| 2 | Model-specific component | |
| 3 | Model-specific component | |
| 4 | Model-specific component | |
| 5 | Model-specific component | |
| 6 | Model-specific component | |
| 7 | Connection chain ring | |
| Model-specific component | ||
| Model-specific component | ||
| Hammerless locking device | Retaining position for the rigging pin |
Frequently asked questions
Which brand and type of equipment is the CR Dragline Chain and Rigging?
The CR Dragline Chain and Rigging is listed under the CR brand. Status: Historical model.
Which components and wear parts are recorded for the CR Dragline Chain and Rigging?
10 components are recorded, including: Connection chain ring, Hammerless locking device and more. The full list with locations is in the components table on this page.
Which model-specific components of the CR Dragline Chain and Rigging have their own page?
Model-specific components with their own page: Hammerless locking device (1 in total).
How do I enquire about parts for the CR Dragline Chain and Rigging?
Send us a drawing or sample and tell us the equipment model and part name.
