2022–2026 · 3 models
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Historical names / renamings | Period | Components |
|---|---|---|---|
| Cail & Fletcher 1680 | 1680 mm | 2022–2026 | 6 |
| Cail & Fletcher 1900 | 1900 mm | 2022–2026 | 6 |
| Cail & Fletcher 2140 | 2140 mm | 2022–2026 | 6 |

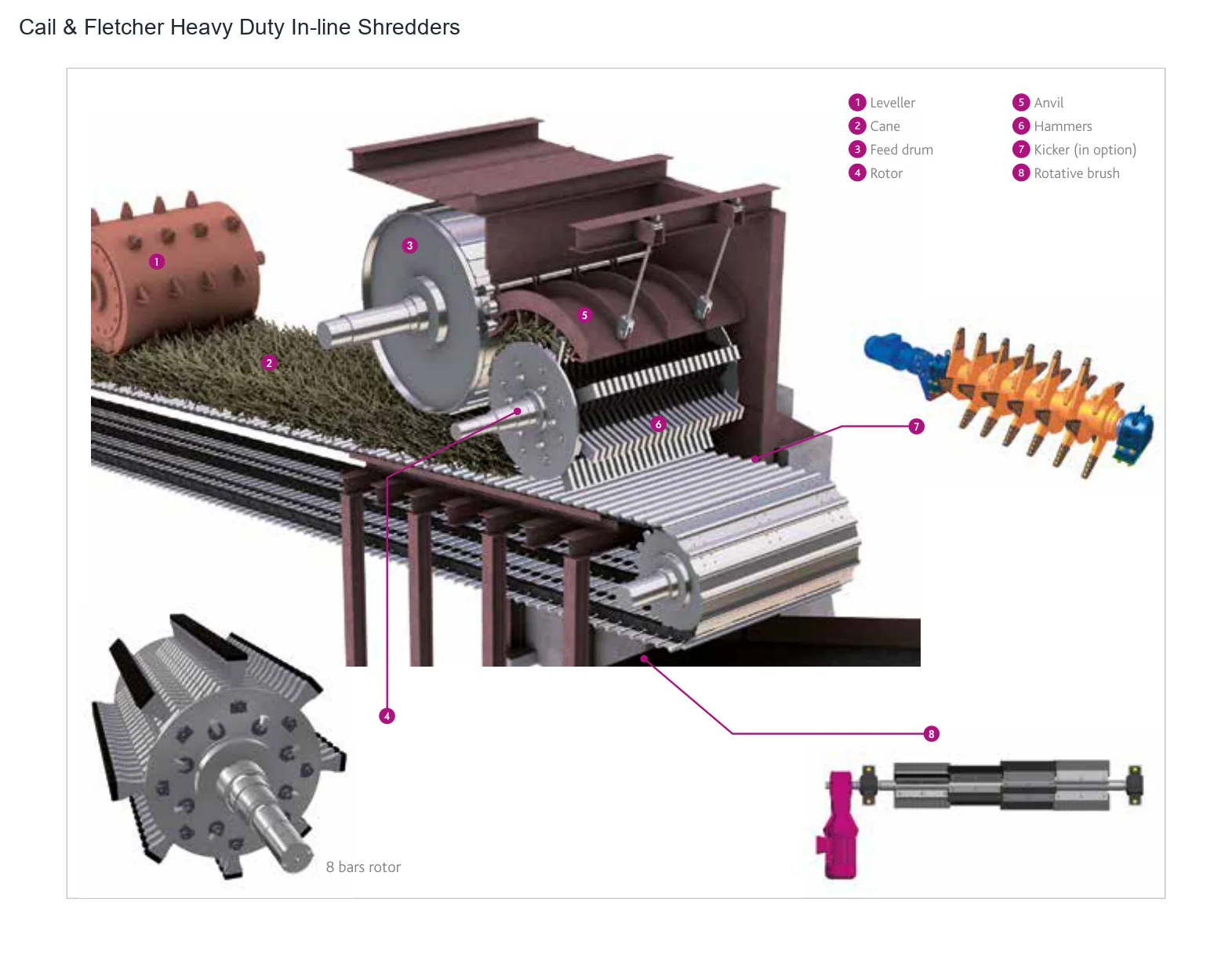

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Leveller | Above the incoming cane | Cail & Fletcher in-line shredder pictured configuration (exact dimensions or version not specified) |
| 2 | Cane feed | Cane flow through the feed path | Cail & Fletcher in-line shredder pictured configuration (exact dimensions or version not specified) |
| 3 | Feed drum | Feed section upstream of rotor | Cail & Fletcher in-line shredder pictured configuration (exact dimensions or version not specified) |
| 4 | Rotor assembly | Rotor shaft region | Cail & Fletcher in-line shredder pictured configuration (exact dimensions or version not specified) |
| 5 | Anvil | Working clearance outside rotor | Cail & Fletcher in-line shredder pictured configuration (exact dimensions or version not specified) |
| 6 | Hammers | Circumferential striking area of rotor | Cail & Fletcher in-line shredder pictured configuration (exact dimensions or version not specified) |
| 7 | Kicker | Discharge side downstream of rotor (optional) | Cail & Fletcher in-line shredder pictured configuration (exact dimensions or version not specified) |
| 8 | Rotative brush | Cleaning arrangement by feed drum | Cail & Fletcher in-line shredder pictured configuration (exact dimensions or version not specified) |
| Component |
|---|
| Rotor disc |
Models with the same components are grouped together; select a group to open its component table.
Models: Cail & Fletcher 1680, Cail & Fletcher 1900, Cail & Fletcher 2140
| No. | Component |
|---|---|
| 1 | Model-specific component |
| 3 | Feed drum |
| 5 | Anvil |
| 6 | Hammer head |
| 8 | Model-specific component |
| Rotor disc |
The Cail & Fletcher Heavy Duty In-line Shredders covers 3 models: Cail & Fletcher 1680, Cail & Fletcher 1900, Cail & Fletcher 2140. Former and renamed designations are listed in the models table on this page.
The Cail & Fletcher Heavy Duty In-line Shredders is also documented under these designations: Cail & Fletcher 1680, 1680 mm, Cail & Fletcher 1900, 1900 mm, Cail & Fletcher 2140, 2140 mm.
The Cail & Fletcher Heavy Duty In-line Shredders is listed under the Cail Fletcher brand. Period: 2022–2026. Status: Historical model.
6 components are recorded, including: Hammer head, Rotor disc, Anvil, Feed drum and more. The full list with locations is in the components table on this page.
