Sliding coal plow · 2 2013–2014 · 3 models
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Historical names / renamings | Period | Components |
|---|---|---|---|
| Bucyrus GH plow product family | Bucyrus Coal plough GH800; Bucyrus Coal plough GH1600; Bucyrus GH GH 9-38 ve | 2 2013–2014 | 5 |
| Bucyrus RHH plow | Bucyrus Coal plough RHH800 | 2 2013–2014 | 4 |
| Bucyrus Electra Evo longwall shearer | Bucyrus Longwall drum coal shearer Electra 2000 Evo; Bucyrus Longwall drum coal shearer Electra 3000 Evo; Bucyrus Longwall drum coal shearer Electra 4000 Evo; Bucyrus EL3000 | 2 2013–2014 | 4 |

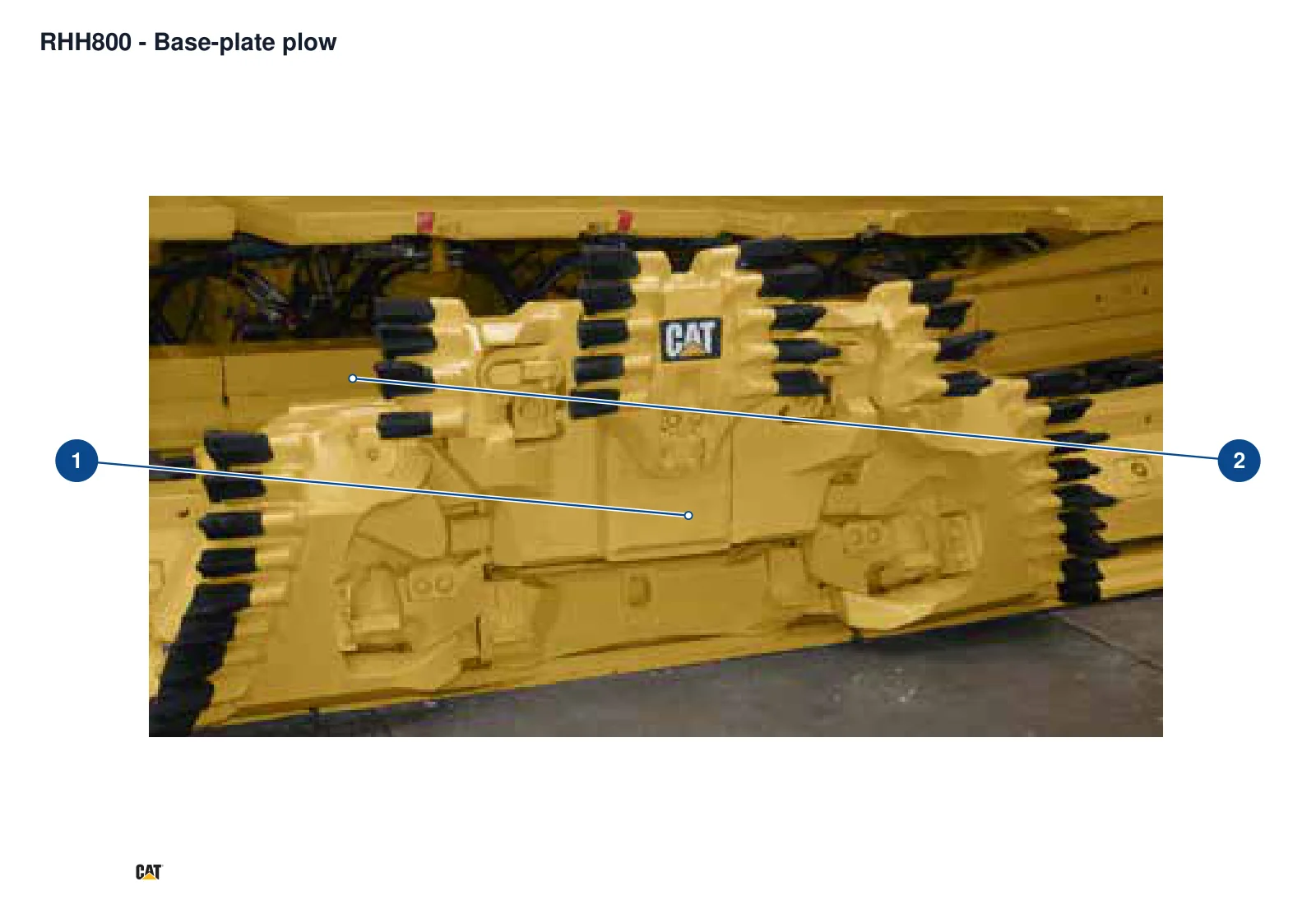

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Plow body | Plow body beside the conveyor line pans | RHH800 |
| 2 | Cutting bit | Cutting bits at the leading edge of the plow body | RHH800 |
| Component |
|---|
| EL3000 main frame |
| EL3000 cutting motor |
| EL3000 traction motor |
| EL3000 automation package |
| base plate |
| Coal cleaning blade |
| Coal plowing chain |
| Cast planer chain guide |
| Plane body wear-resistant contact parts |
| Planer body height adjustment pick block |
| Top pick and adjusting turret |
| Height adjustment worm gear |
Models with the same components are grouped together; select a group to open its component table.
| Component | Location |
|---|---|
| Plane body wear-resistant contact parts | Contact point between planer body and guide piece |
| Coal plowing chain | Coal plowing traction circuit |
| Planer body height adjustment pick block | Planing body height module |
| Top pick and adjusting turret | Upper part of plane body |
| Height adjustment worm gear | Planing body turret, operable from the goaf side |
| Component | Location |
|---|---|
| base plate | The bottom of the planer body slides along the coal seam floor and the lower part of the conveyor trough |
| Coal cleaning blade | Bottom plate edge |
| Coal plowing chain | Coal plowing traction circuit |
| Cast planer chain guide | Goaf side of working face conveyor |
| Component | Location |
|---|---|
| EL3000 main frame | 2008 original named main frame |
| EL3000 cutting motor | 2008 original 2×850kW; only this technical version |
| EL3000 traction motor | The original maximum is 2×150kW; all old model standard values are not included |
| EL3000 automation package | The manuscript is advanced and automated, and no control component list is given. |
The Bucyrus Longwall Shearers and Plows covers 3 models: Bucyrus GH plow product family, Bucyrus RHH plow, Bucyrus Electra Evo longwall shearer. Former and renamed designations are listed in the models table on this page.
The Bucyrus Longwall Shearers and Plows is also documented under these designations: Bucyrus GH plow product family, Bucyrus Coal plough GH800, Bucyrus Coal plough GH1600, Bucyrus GH GH 9-38 ve, Bucyrus RHH plow, Bucyrus Coal plough RHH800, Bucyrus Electra Evo longwall shearer, Bucyrus EL3000.
The Bucyrus Longwall Shearers and Plows is listed under the Bucyrus brand as: Sliding coal plow. Period: 2 2013–2014. Status: Historical model.
12 components are recorded, including: Plane body wear-resistant contact parts, Coal plowing chain, Planer body height adjustment pick block, Top pick and adjusting turret, Height adjustment worm gear, base plate, Coal cleaning blade, Cast planer chain guide and more. The full list with locations is in the components table on this page.
Bucyrus GH800 → Cat / Unit Rig GH800, Bucyrus GH1600 → Cat / Unit Rig GH1600, Bucyrus RHH800 → Cat / Unit Rig RHH800, Bucyrus Electra 2000 Evo → Cat / Unit Rig EL2000.
