Which models does the Belt conveyor cover?
The Belt conveyor covers 3 models: Bergeaud belt conveyor, Bergeaud mobile/semi-fixed conveyor, Bergeaud TC belt conveyor. Former and renamed designations are listed in the models table on this page.
Belt conveyor
Belt conveyor · 3 models
Bergeaud
BergeaudBrand
Belt conveyorEquipment type
Historical modelStatus
Bergeaud
Models and Historical Names in This Series
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Historical names / renamings | Period | Components |
|---|---|---|---|
| Bergeaud belt conveyor | Bergeaud Belt conveyor | 7 | |
| Bergeaud mobile/semi-fixed conveyor | |||
| Bergeaud TC belt conveyor | TC 500x12m | 2003 |
Bergeaud
Numbered Components

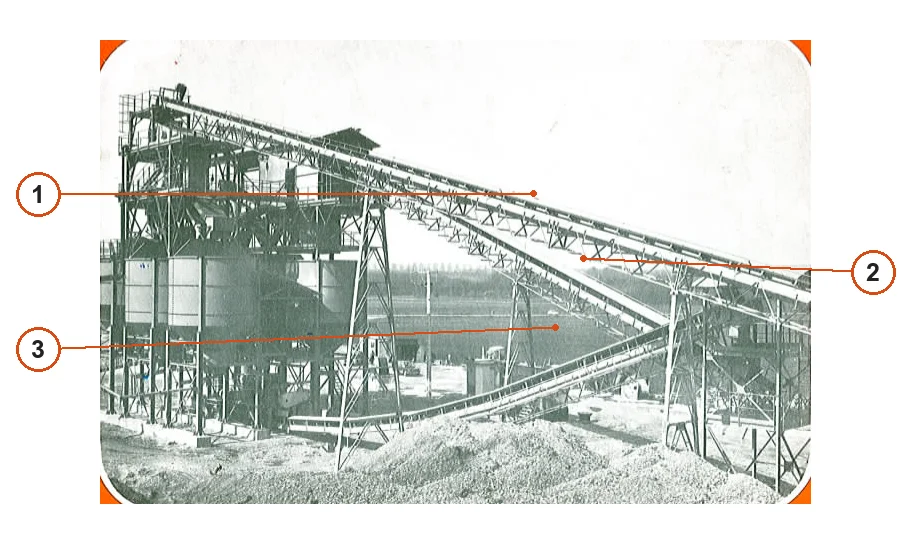

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Conveyor belt | Material-carrying path above the truss | TC75 brochure installed unit |
| 1 | Conveyor belt | Inclined carrying path above the chassis | TCM75-3 brochure version |
| 2 | Conveyor truss | Truss below the conveyor belt | TC75 brochure installed unit |
| 2 | Conveyor truss | Below the carrying belt | TCM75-3 brochure version |
| 3 | Support legs | Supports below the conveyor | TC75 brochure installed unit |
| 3 | Travel wheels | At the right end of the mobile conveyor | TCM75-3 brochure version |
Other Components · 12 items
| Component |
|---|
| Saadi on-site conveyor belt |
| II.3.3 and installation photo |
| Saadi field driven roller |
| II.3.3 specifies tombeur moteur |
| Saadi on-site redirection roller |
| II.3.3 specifies tombeur de renvoie |
| Saadi on-site support roller set |
| II.3.3 specifies rouleaux |
| Saadi on-site conveyor drive motor |
| Saadi field chain drive set |
| Saadi on-site conveyor truss and support frame |
| Descriptive name, not an OEM parts-catalog name |
Bergeaud
Components by Model
Models with the same components are grouped together; select a group to open its component table.
Bergeaud belt conveyor7 items
| Component | Location |
|---|---|
| Saadi on-site conveyor belt | Connect the rollers at both ends to carry sand and gravel; II.3.3 and original on-site photos |
| Saadi field driven roller | Conveyor belt drive end; II.3.3 specifies tombeur moteur |
| Saadi on-site redirection roller | The other end of the conveyor belt; II.3.3 clear tombeur de renvoie |
| Saadi on-site support roller set | Upper/lower conveyor belt support; II.3.3 clear rouleaux |
| Saadi on-site conveyor drive motor | Section III clearly states that 3.5kW is currently used, and the next page clearly states that the wound rotor asynchronous motor is used on site. |
| Saadi field chain drive set | III.2.4 par chaine transmission between single row station motor and drum |
| Saadi on-site conveyor truss and support frame | Original page 29 Photo II.7/II.8 Actual visual inspection of external trusses, braces and legs; descriptive naming, not OEM parts book names |
Frequently asked questions
What other names or designations is the Belt conveyor known by?
The Belt conveyor is also documented under these designations: Bergeaud belt conveyor, Bergeaud mobile/semi-fixed conveyor, Bergeaud TC belt conveyor, TC 500x12m.
Which brand and type of equipment is the Belt conveyor?
The Belt conveyor is listed under the Bergeaud brand as: Belt conveyor. Status: Historical model.
Which components and wear parts are recorded for the Belt conveyor?
7 components are recorded, including: Saadi on-site conveyor belt, Saadi field driven roller, Saadi on-site redirection roller, Saadi on-site support roller set, Saadi on-site conveyor drive motor, Saadi field chain drive set, Saadi on-site conveyor truss and support frame. The full list with locations is in the components table on this page.
How do I enquire about parts for the Belt conveyor?
Send us a drawing or sample and tell us the equipment model and part name.
