Which models does the Pit cover?
The Pit covers 3 models: Pit Viper 231, Pit Viper 275, Pit Viper 351. Former and renamed designations are listed in the models table on this page.
Pit
2009—2016 · 3 models
Atlas Copco Mining
Atlas Copco MiningBrand
2009—2016Period
Historical modelStatus
Atlas Copco Mining
Models and Historical Names in This Series
Select a model to jump to its component table; former and renamed designations are listed under “Historical names / renamings”.
| Model | Historical names / renamings | Period | Components |
|---|---|---|---|
| Pit Viper 231 | 2009—2016 | ||
| Pit Viper 275 | 2009—2016 | ||
| Pit Viper 351 | PV-351; PV351 | 2000 MINExpo | 8 |
Current successor model: Epiroc
Atlas Copco Mining
Numbered Components

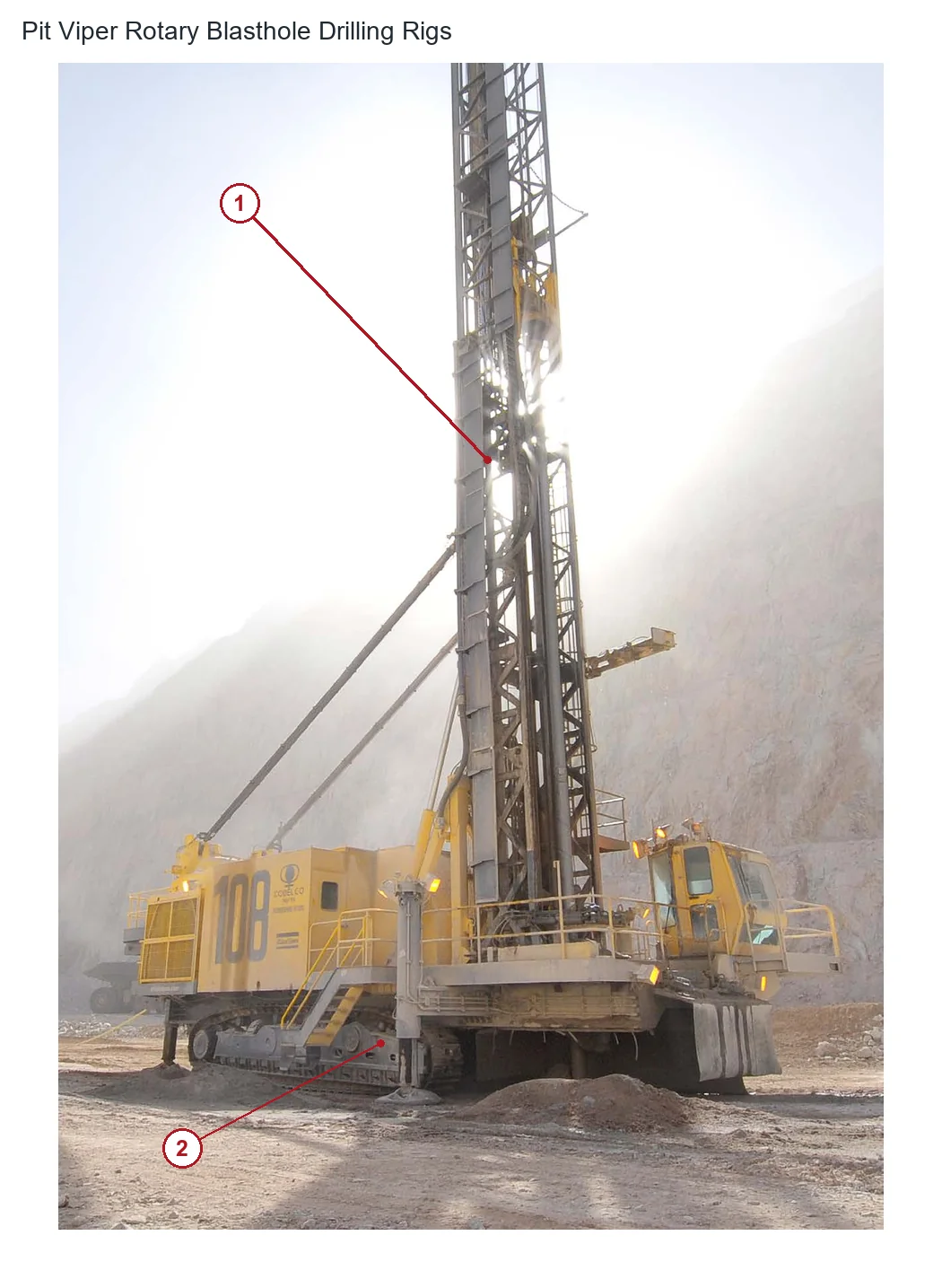

The numbers on the diagram correspond one to one with the rows below.
| No. | Component | Location | Applies to |
|---|---|---|---|
| 1 | Mast | Vertical drilling mast above main platform | Pit Viper 351 |
| 2 | Crawler undercarriage | Tracked support below main platform | Pit Viper 351 |
Other Components · 6 items
| Component |
|---|
| Rotary head |
| Drill rod carousel |
| Drill rod |
| Air compressor |
| Dust curtain |
| Automatic wire rope tensioning device |
Atlas Copco Mining
Components by Model
Models with the same components are grouped together; select a group to open its component table.
Pit Viper 3518 items
| No. | Component | Location |
|---|---|---|
| 1 | Drill mast | Drill string guide structure at the upper part of the drill rig |
| 2 | Crawler chassis | |
| Rotary head | ||
| Model-specific component | ||
| Drill rod | ||
| Air compressor | ||
| Model-specific component | ||
| Automatic wire rope tensioning device | Wire cable feed mechanism of the drill mast |
Frequently asked questions
What other names or designations is the Pit known by?
The Pit is also documented under these designations: Pit Viper 231, Pit Viper 275, Pit Viper 351, PV-351.
Which brand and type of equipment is the Pit?
The Pit is listed under the Atlas Copco Mining brand. Period: 2009—2016. Status: Historical model.
Which components and wear parts are recorded for the Pit?
8 components are recorded, including: Rotary head, Drill rod, Air compressor, Crawler chassis, Drill mast, Automatic wire rope tensioning device and more. The full list with locations is in the components table on this page.
Which model-specific components of the Pit have their own page?
Model-specific components with their own page: Drill mast, Automatic wire rope tensioning device (2 in total).
What is the current successor of the Pit?
Epiroc.
How do I enquire about parts for the Pit?
Send us a drawing or sample and tell us the equipment model and part name.
